Fully Automatic Horizontal Wall Panel Production Line
The Leader in Intelligent Manufacturing for Precast Building Industrialization
Intelligent Horizontal Production System
The Fully Automatic Horizontal Wall Panel Production Line (Flat Mold Process) integrates electrical control, hydraulic transmission, and mechanical operation into a seamless manufacturing powerhouse. By casting wall panels horizontally, this equipment ensures exceptionally smooth panel surfaces, uniform density, and allows for the easy insertion of internal reinforcements (such as steel mesh or fiber grids).
Adopting an internationally advanced industrial PLC control system and high-precision hydraulic components, the plant realizes safe, continuous, and highly profitable automated production.
The 10 Core Automated Systems
This horizontal plant is a complete turnkey solution, driven by ten heavily synchronized sub-systems to guarantee maximum output and minimal labor:
- Material Storage System: Scientific matching capacity equipped with dust removal, arch-breaking devices, and electronic level meters.
- Feeding System: Heavy-duty screw conveyors ensure rapid, dust-free material transport tailored to your workshop layout.
- Measuring System: Highly precise load cells for exact liquid and powder proportioning.
- Mixing System: A high-shear foam concrete mixer guaranteeing a uniform, stable slurry.

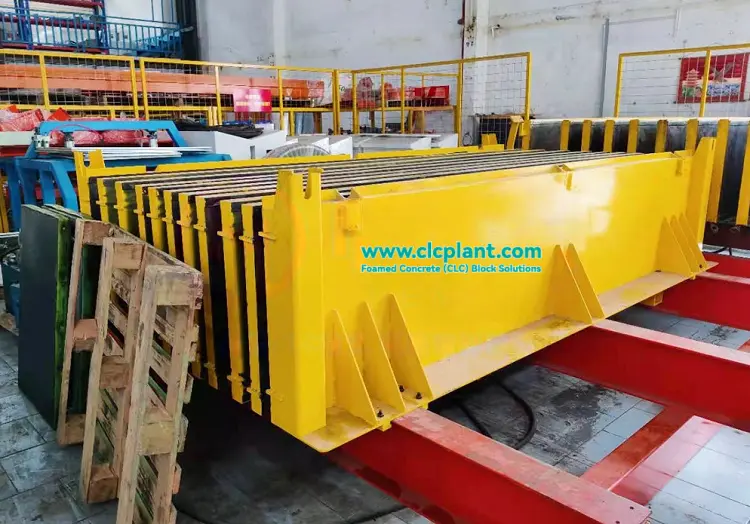

- Forming Mold Car: Precision horizontal molds that ensure exact panel thickness and perfect flatness.
- Automatic Tube Pumping System: Quickly extracts core tubes to create hollow channels, reducing panel weight and saving raw materials.
- Automatic Cleaning System: Keeps molds and equipment residue-free, drastically improving continuous production efficiency.
- PLC Electric Control System: The intelligent core that synchronizes the entire operation, allowing for 1-button control.
- Automatic Plate Output System: Safely ejects and transports the cured, horizontally-cast panels.
- Packing & Running System: Fully automatic stacking and pallet-free packaging, eliminating heavy manual lifting.
Superior Characteristics of Horizontal Cast Panels
- Exceptional Surface Smoothness: Because the concrete settles flat, gravity ensures a perfectly uniform, plaster-free surface that is ready for immediate decorative finishing.
- Lightweight & High Strength: Weighing only 1/4 to 1/3 of clay bricks, these panels significantly reduce building load while maintaining a compressive strength exceeding 5.0 MPa.
- Waterproof & Moisture-Proof: The dense, composite structure prevents water seepage, entirely avoiding expansion and deformation in humid environments.
- Super Hanging Power: Delivers a single-point hanging force of over 50 kilograms, safely supporting heavy fixtures, TVs, and cabinetry.
- Massive Space & Cost Savings: Thinner panels increase the usable floor area by 4-6 sqm per 100 sqm built, while rapid dry-installation reduces overall project costs by over 20%.
Plant Investment & Raw Material Strategy
1. Plant Infrastructure Requirements
- Production Plant: 20-60 meters wide, 80-200 meters long, with a clearance height of >6 meters.
- Conservation Area: 2,000 - 8,000 square meters.
- Utility Needs: Electricity: 200-800 kW total power; Water: 80-500 tons/day.
- Total Site Area: Approx. 1.3 - 5 Acres (8-30 Mu).
2. Low-Cost Raw Material Configuration
The base binder is standard 425R silicate cement. To maximize your profit margins and achieve rapid ROI, the bulk of the aggregate can utilize cheap, locally sourced industrial waste such as fly ash, stone powder, river sand, or slag powder.
Global Success Cases
Case 1: Large Government Housing Project (Middle East)
We provided a complete horizontal wall panel production line for a mega residential project, achieving an annual capacity of 400,000 square meters. Utilizing abundant local quartz sand, the panels boast excellent heat and fire resistance. The exceptional dimensional accuracy of the flat-mold process earned it the status of a regional green building demonstration project.
Case 2: Industrial Park Construction (Southeast Asia)
Running stably for several years, this automated horizontal line outputs 300,000 square meters of wall panels annually. Adjusted for tropical climates, the panels maintain flawless stability in high-heat and high-humidity environments, easily meeting the stringent requirements of international developers.
Frequently Asked Questions (FAQ)
1. What is the main difference between a Horizontal and a Vertical wall panel machine?
In a horizontal machine (flat mold), panels are cast laying flat. This allows gravity to create an exceptionally smooth surface and makes it very easy to manually or automatically embed reinforcing steel mesh or fiberglass grids into the panel. Vertical machines cast panels standing up, which is great for saving factory floor space but can sometimes make reinforcement placement more complex.
2. Does this line include cutting equipment?
Yes. The plant can be seamlessly integrated with our CNC Partition Panel Cutting Machine to automatically saw the continuous cast slabs into specific lengths and groove the edges (tongue-and-groove) for easy installation on the job site.
With an immense daily output capacity (1,000 - 5,000 square meters) and a labor cost savings of over 50%, our Fully Automatic Horizontal Wall Panel Production Line guarantees an incredibly short return on investment.
Contact us today to request a free equipment layout plan, technical training details, and a customized commercial quotation!
